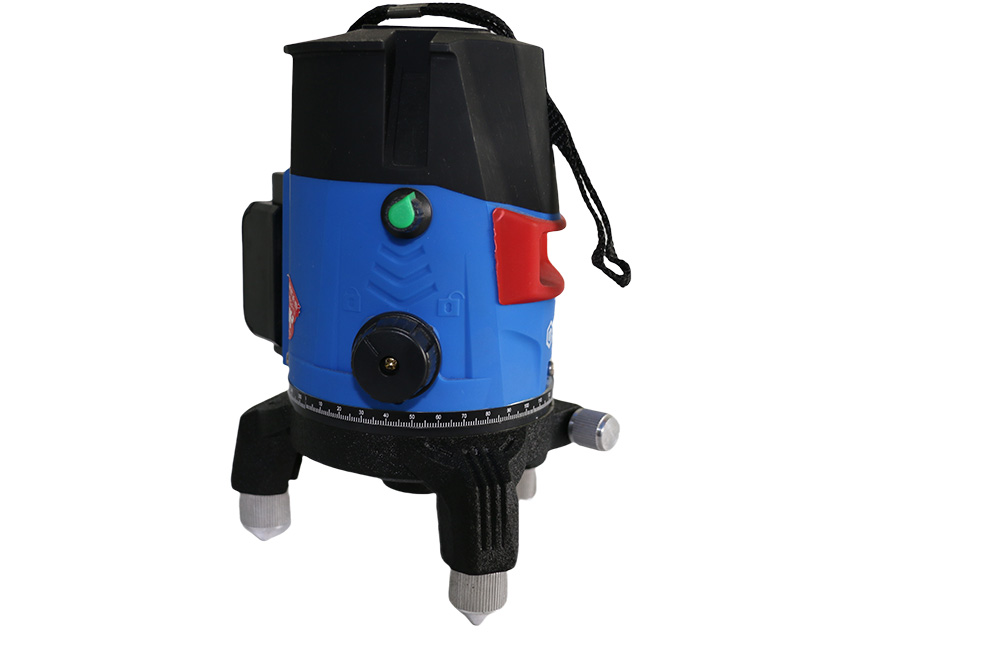

Multi-line projection instrument

Lithium batteries can be selected according to the customer's wishes.

It adopts the automatic leveling (gravity pendulum - magnetic damping) method, which is convenient and reliable to use.

It adopts a semiconductor laser with a wavelength of 635nm/515nm, and the laser lines are clear and bright.

Generate four vertical lines and one horizontal line, with the corresponding points below.

Out-of-range alarm, laser off.

Technical indicators:

Safety accuracy: ±1mm / 5m

Lower point alignment accuracy: ±1mm / 1.4m

Orthogonal accuracy: 90°±60"

Automatic leveling range: approximately ±2.5°

Laser safety level: Below 1mW (Safety Standard Level 2)

Power supply: 3 AA batteries (if lithium batteries are selected, 3.7V lithium batteries will be used)

Operating temperature: -10℃ to +45℃
