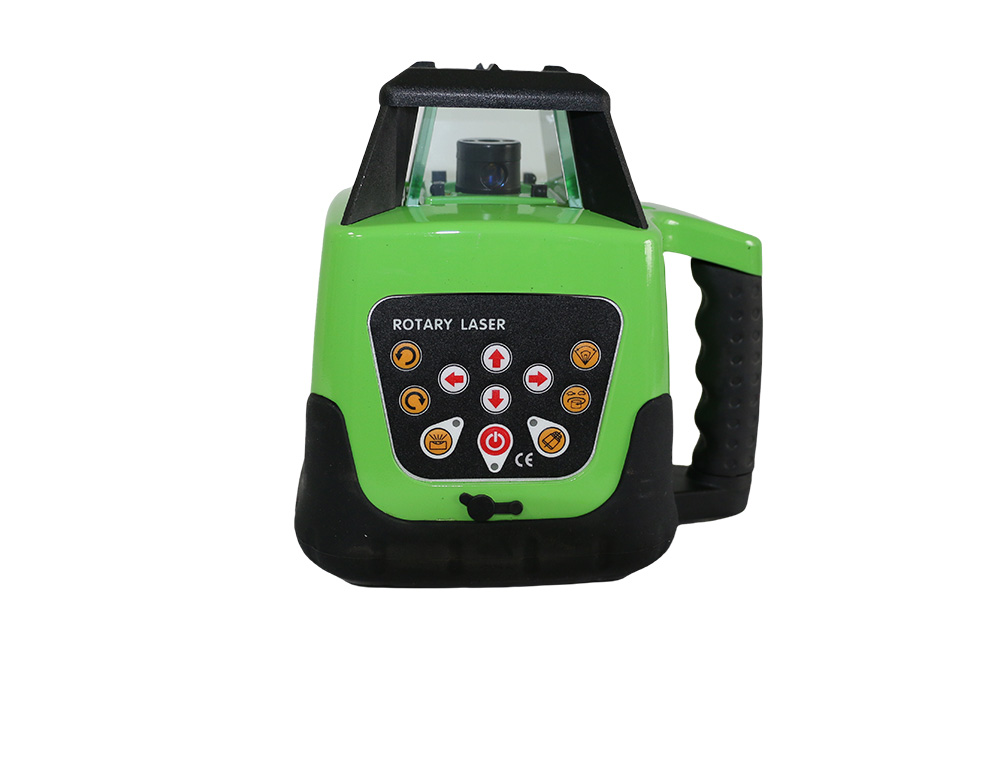

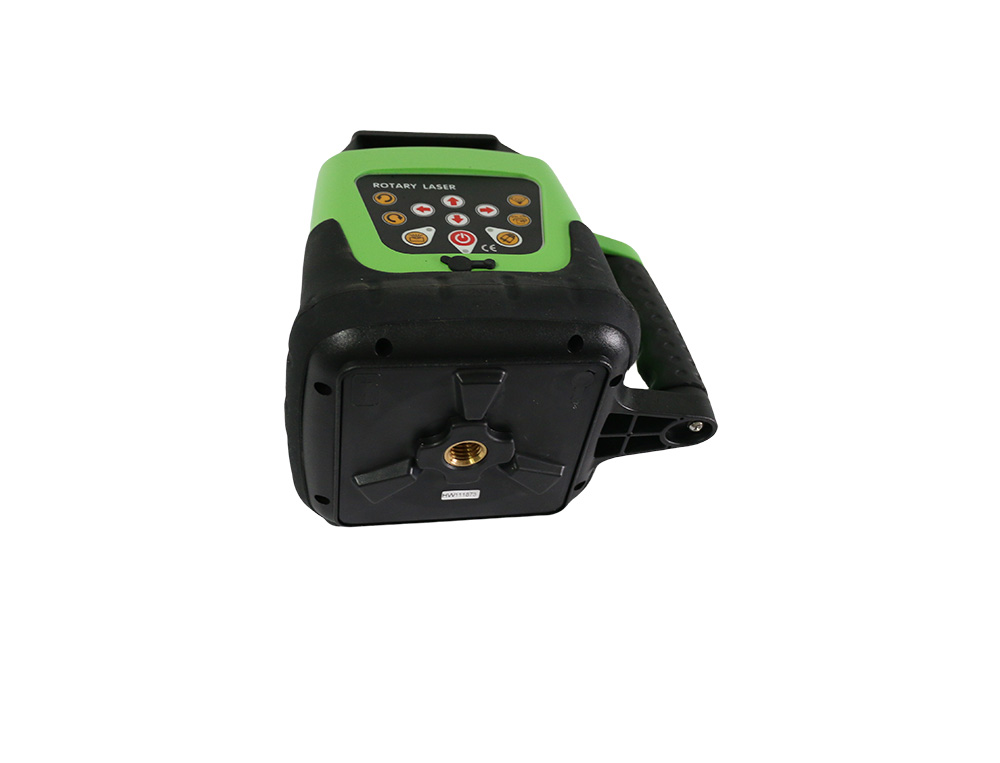

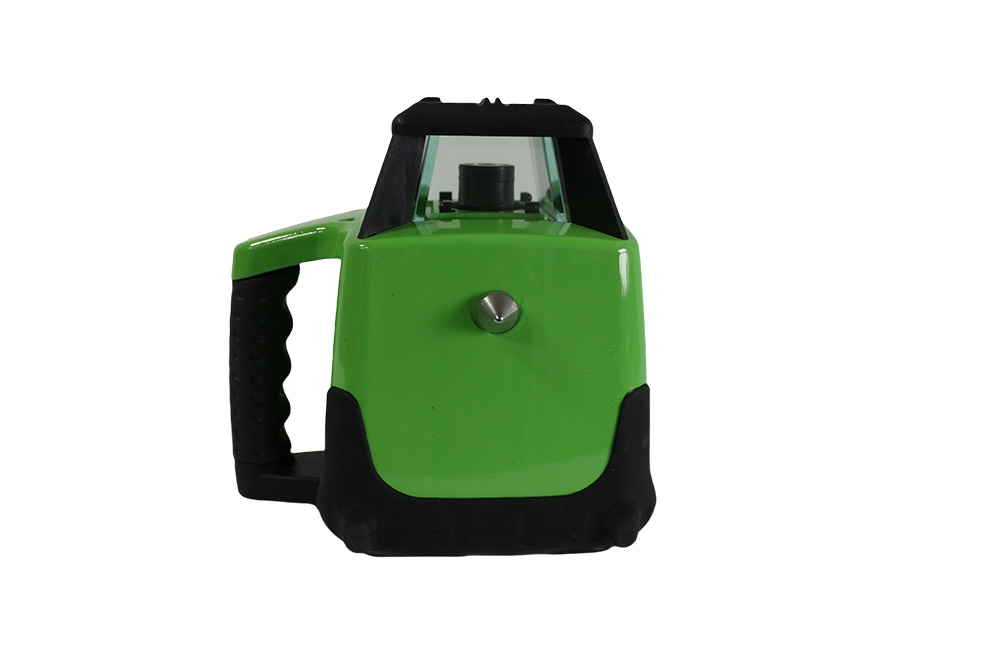

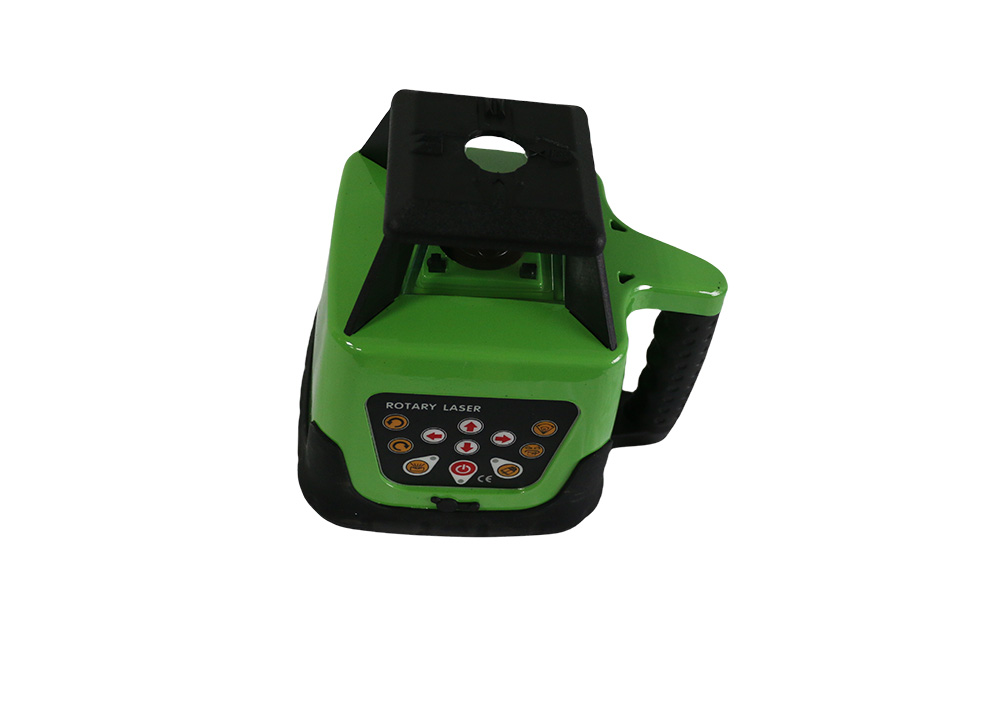

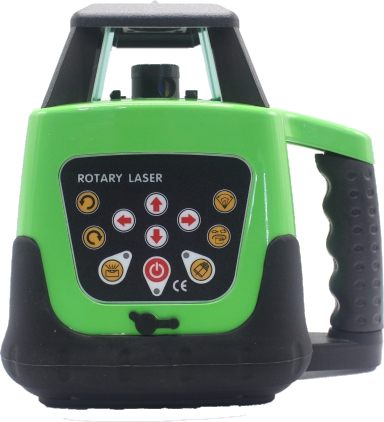

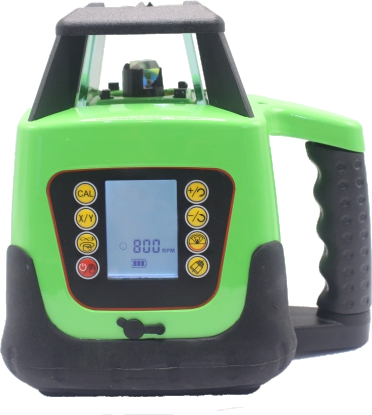

Rotary laser leveler
This instrument adopts a semiconductor laser with a wavelength of 635nm (green light is 520nm), and the emitted laser beam has good visibility.
The laser beam can rotate to generate a laser scanning surface. When placed vertically, a horizontal plane and a plumb line can be automatically generated.
When the instrument is placed horizontally, it can automatically generate a vertical line and a horizontal line.
Product Details
Characteristics:
8-line laser and 1 lower alignment point
Continuous or pulsed lasers can be freely switched and can be used both indoors and outdoors
The body can rotate freely by 360 degrees
When the safety range is too large, an automatic alarm will be triggered if the range is exceeded
Electronic security, automatic compensation
Technical indicators:
Horizontal accuracy: ±1mm/10m
Vertical accuracy: ±1mm/10m
Lower alignment accuracy: ±1mm/1.4m
Automatic leveling range: approximately ±4°
Launch Angle: Vertical line ≥110°, horizontal line ≥120°
Laser wavelength: 635-650nm.
Working distance: The indoor working radius is approximately 10 meters. A detector is adopted with a working radius of 50 meters
Laser grade: ClassII
Power supply: 4.8V-6V (4 AA batteries, optional 4.2V curved lithium battery)
Continuous working time: approximately 6 hours (with the laser tube fully lit)
Operating temperature: -10℃ to +45℃
|
|
